Product Overview

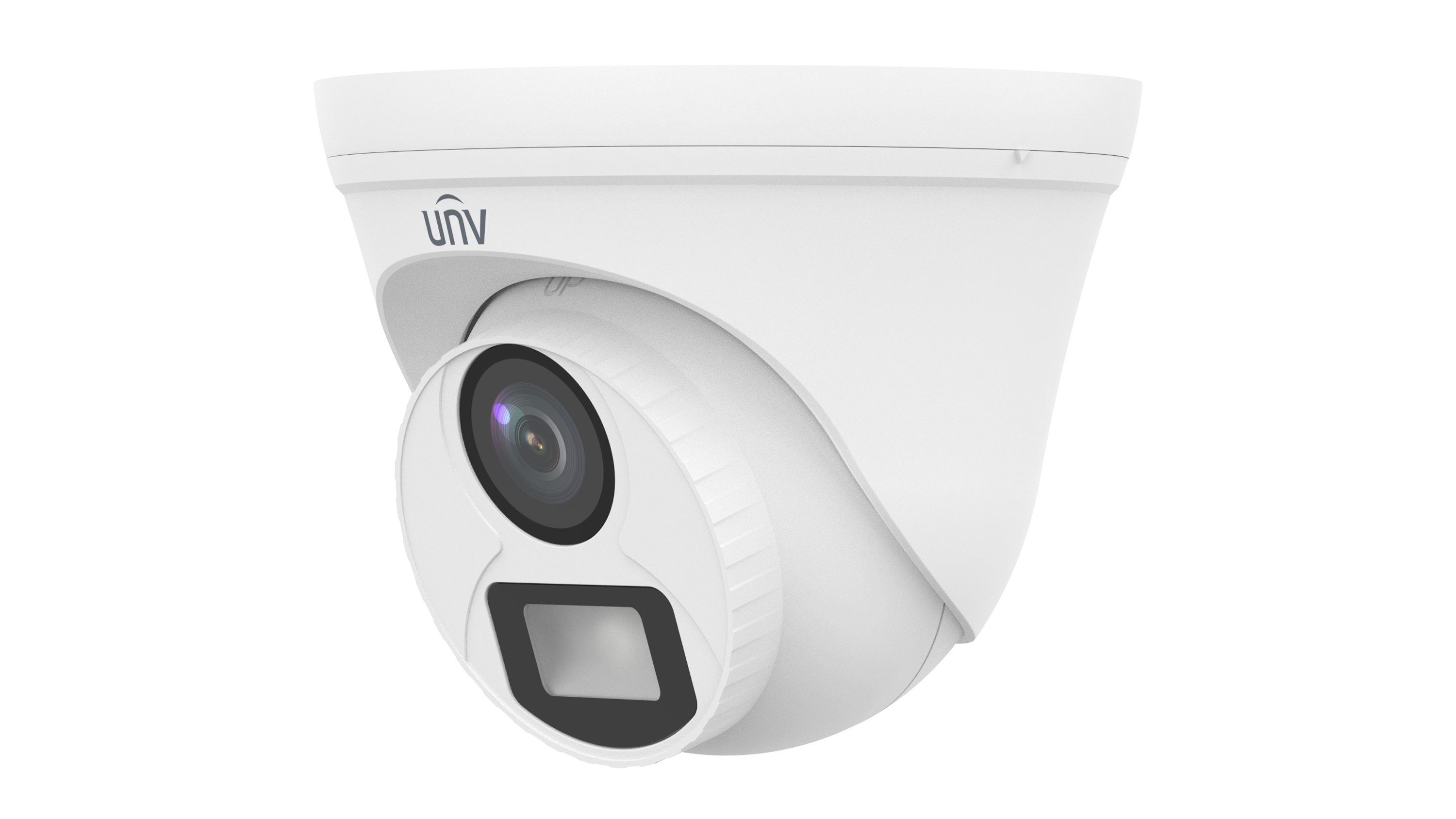

UAC-T112-F28-W-X
- • 2MP high quality image • TVI/AHD/CVI/CVBS • Supports white light illumination, 24/7 full-color imaging • Supports 180° horizontal flip, 180° vertical flip • OSD configuration menu, easy to operate • IP67 waterproof and dustproof design, high reliability • OSD configuration menu in 11 languages • 3D noise reduction technology delivers clean and sharp images • 3-Axis
Key Features
- 2 MP Resolution
- Sensor: 1/3.0" CMOS
- Day/Night: IR-cut filter with auto switch (ICR)
- WDR: DWDR
- Video: Ultra 265, H.265, H.264, MJPEG
- Frame Rate: Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: 640*360,Max 30fps; 2C
- Lens: 2.8 mm - 4.0 mm
- Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Size: 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H)
- Weight: 0.24kg (0.53lb)
Camera
Video & Audio
| Max Resolution | 2 MP | Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Sensor | 1/3.0" CMOS | Frame Rate | Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: 640*360,Max 30fps; 2C |
| Day/Night | IR-cut filter with auto switch (ICR) | Audio Compression | G.711U, G.711A |
| WDR | DWDR | Two-Way Audio | N/A |
Lens
General
| Focal Length | 2.8 mm - 4.0 mm | Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | Dimensions | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Weight | 0.24kg (0.53lb) |
