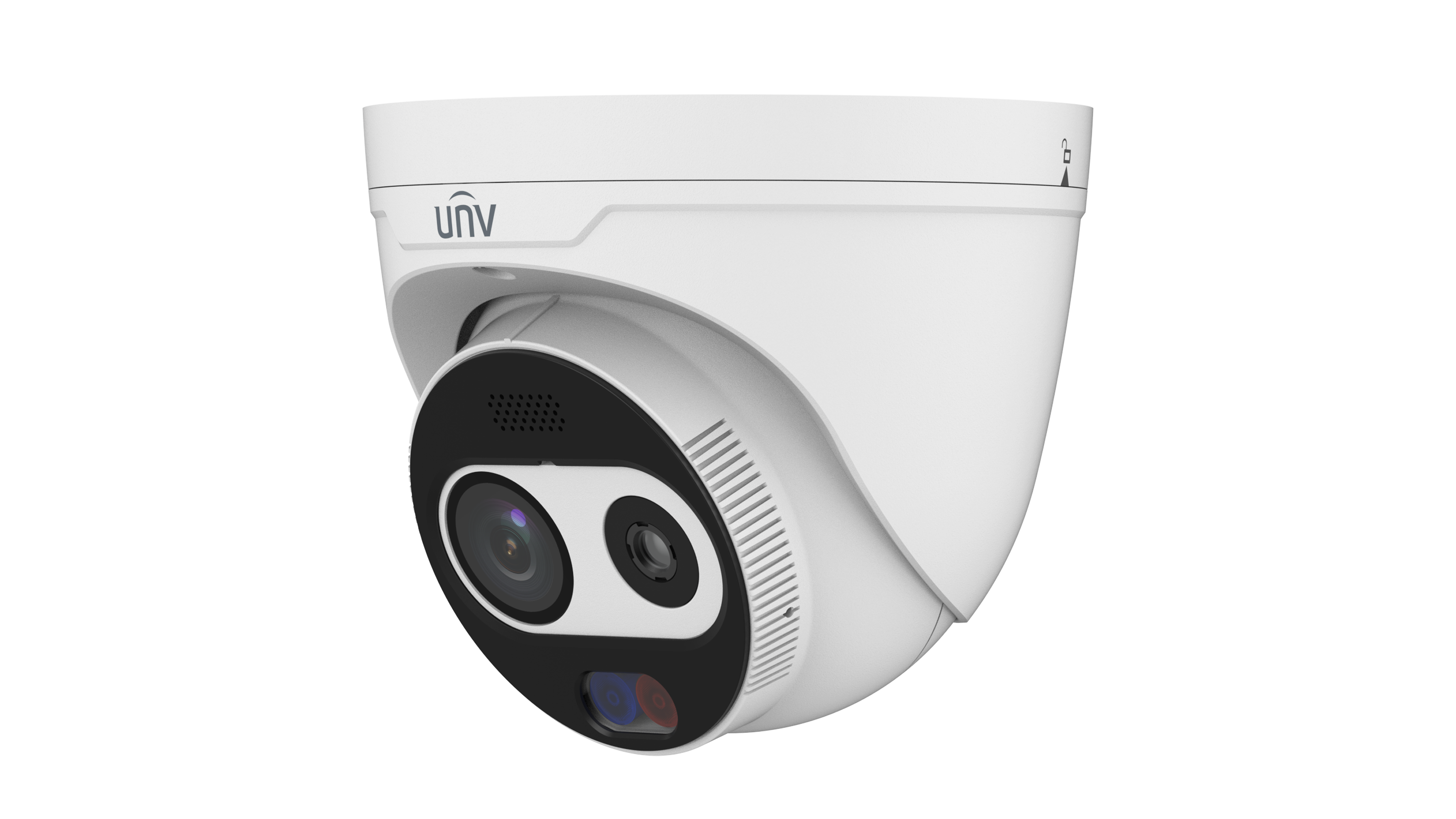

Product Overview
- • Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes • 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring • Thermal module support reliable fire detection, smoking detection and fire shield area • Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm • Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion • Optical module supports smog recognition, which can help with fire alarm reconfirm • Support picture in picture mode, real time contrast live, more convenient and clear • Support audio and light alarm, with red and blue warning lights built in • Ultra 265, H.265, H.264, MJPEG • Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module • DC12V±25% or PoE power supply • Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 G
Key Features
- N/A Resolution
- Sensor: 1/2.8" CMOS
- Day/Night: IR-cut filter with auto switch (ICR)
- WDR: DWDR
- Video: Ultra 265, H.265, H.264, MJPEG
- Frame Rate: Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440)
- Lens: 2.8 mm - 4.0 mm
- Adjustment Angle: Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Size: 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H)
- Weight: 0.24kg (0.53lb)
| Max Resolution | N/A | Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Sensor | 1/2.8" CMOS | Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440) |
| Day/Night | IR-cut filter with auto switch (ICR) | Audio Compression | G.711U, G.711A |
| WDR | DWDR | Two-Way Audio | N/A |
| Focal Length | 2.8 mm - 4.0 mm | Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Adjustment Angle | Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360° | Dimensions | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Weight | 0.24kg (0.53lb) |
