Product Overview
IPC3615LB-AF28(40)-A2

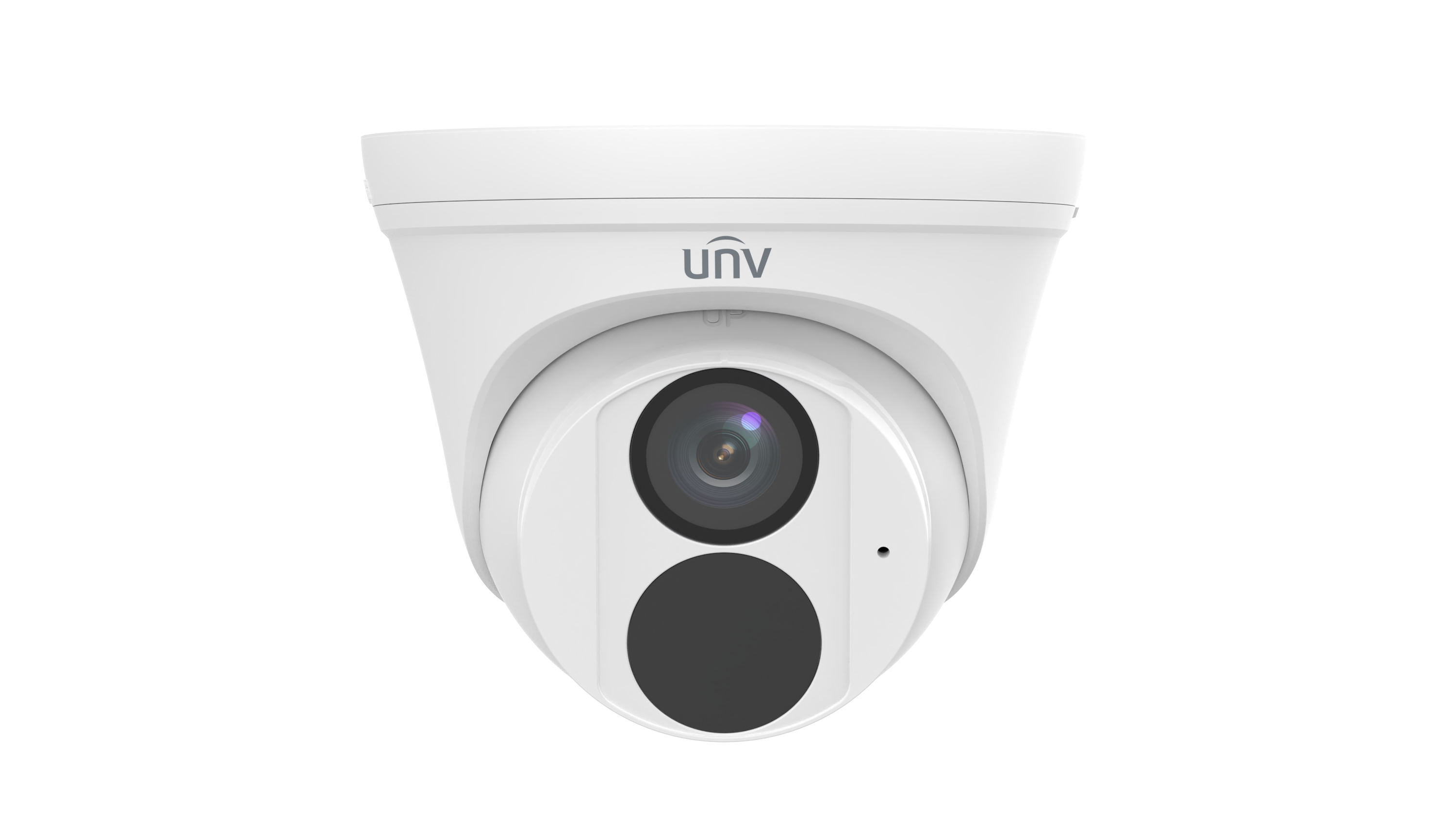

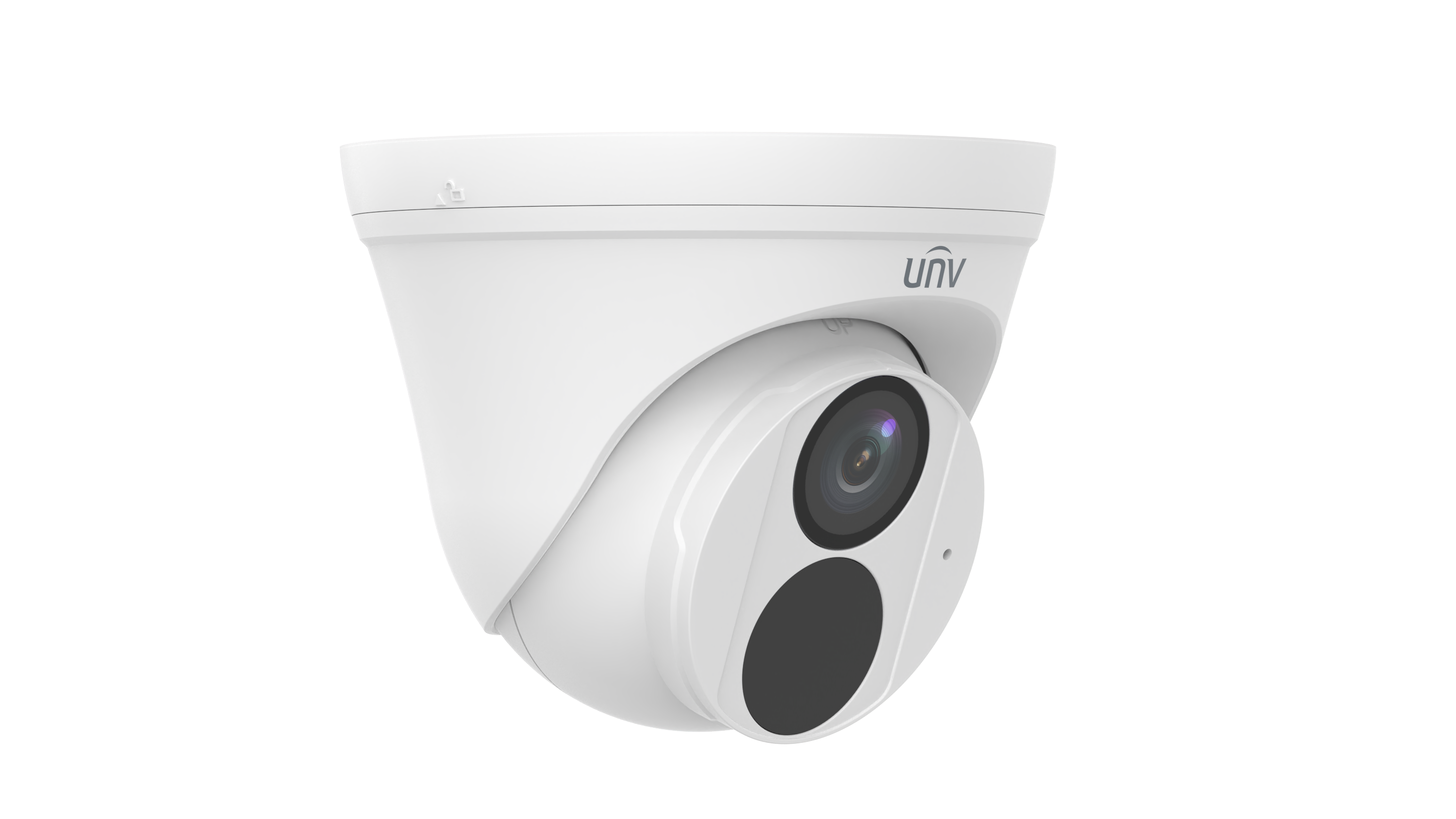

- The Uniview IPC3615LB-AF28(40)-A2 is a 5-megapixel fixed dome network camera designed for high-quality surveillance. It features a 1/2.7" CMOS sensor that delivers clear images at resolutions up to 2880×1620 pixels at 30 frames per second. The camera supports Ultra 265, H.265, H.264, and MJPEG compression formats, optimizing bandwidth and storage efficiency. Equipped with a 2.8mm fixed lens, it offers a horizontal field of view of 112.7°, making it suitable for wide-area monitoring. The IPC3615LB-AF28(40)-A2 incorporates smart intrusion prevention, including cross-line, intrusion, enter area, and leave area detection, reducing false alarms by accurately focusing on humans, motor vehicles, and non-motor vehicles. Its 120dB true Wide Dynamic Range (WDR) technology ensures clear images in challenging lighting conditions. The camera also supports 9:16 corridor mode, built-in microphone, smart IR with up to 30m (98ft) IR distance, and supports up to a 256GB Micro SD card. With an IP67 rating, it is protected against dust and water, making it suitable for various indoor and outdoor environments.
Key Features
- 5 MP Resolution
- Sensor: 1/3.0" CMOS
- Day/Night: IR-cut filter with auto switch (ICR)
- WDR: DWDR
- Video: Ultra 265, H.265, H.264
- Frame Rate: Main Stream: 4MP (2688*1520)
- Lens: 2.8 mm
- Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Size: 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H)
- Weight: 0.24kg (0.53lb)
Camera
Video & Audio
| Max Resolution | 5 MP | Video Compression | Ultra 265, H.265, H.264 |
| Sensor | 1/3.0" CMOS | Frame Rate | Main Stream: 4MP (2688*1520) |
| Day/Night | IR-cut filter with auto switch (ICR) | Audio Compression | G.711U, G.711A |
| WDR | DWDR | Two-Way Audio | N/A |
Lens
General
| Focal Length | 2.8 mm | Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | Dimensions | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Weight | 0.24kg (0.53lb) |
