Product Overview

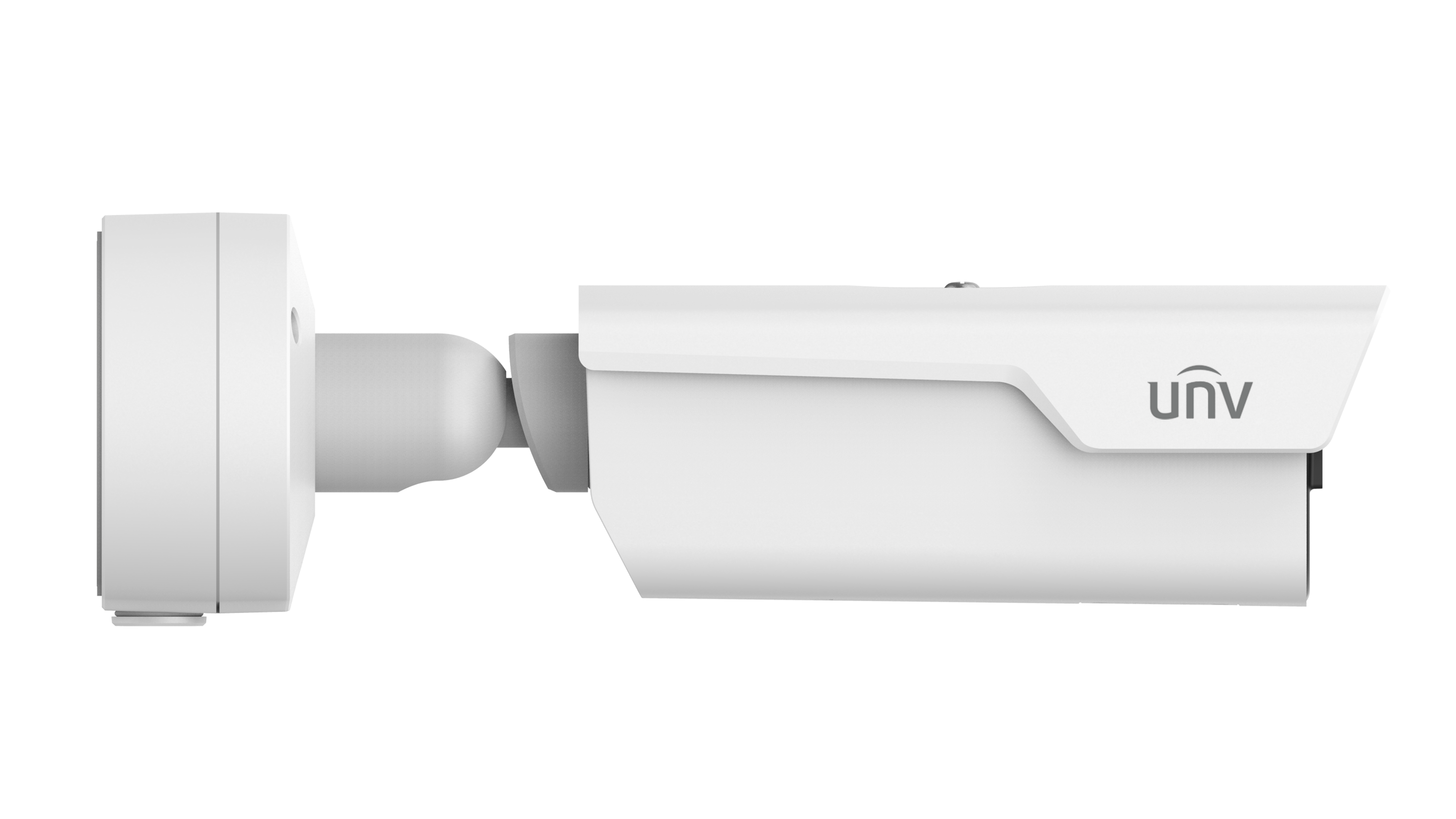

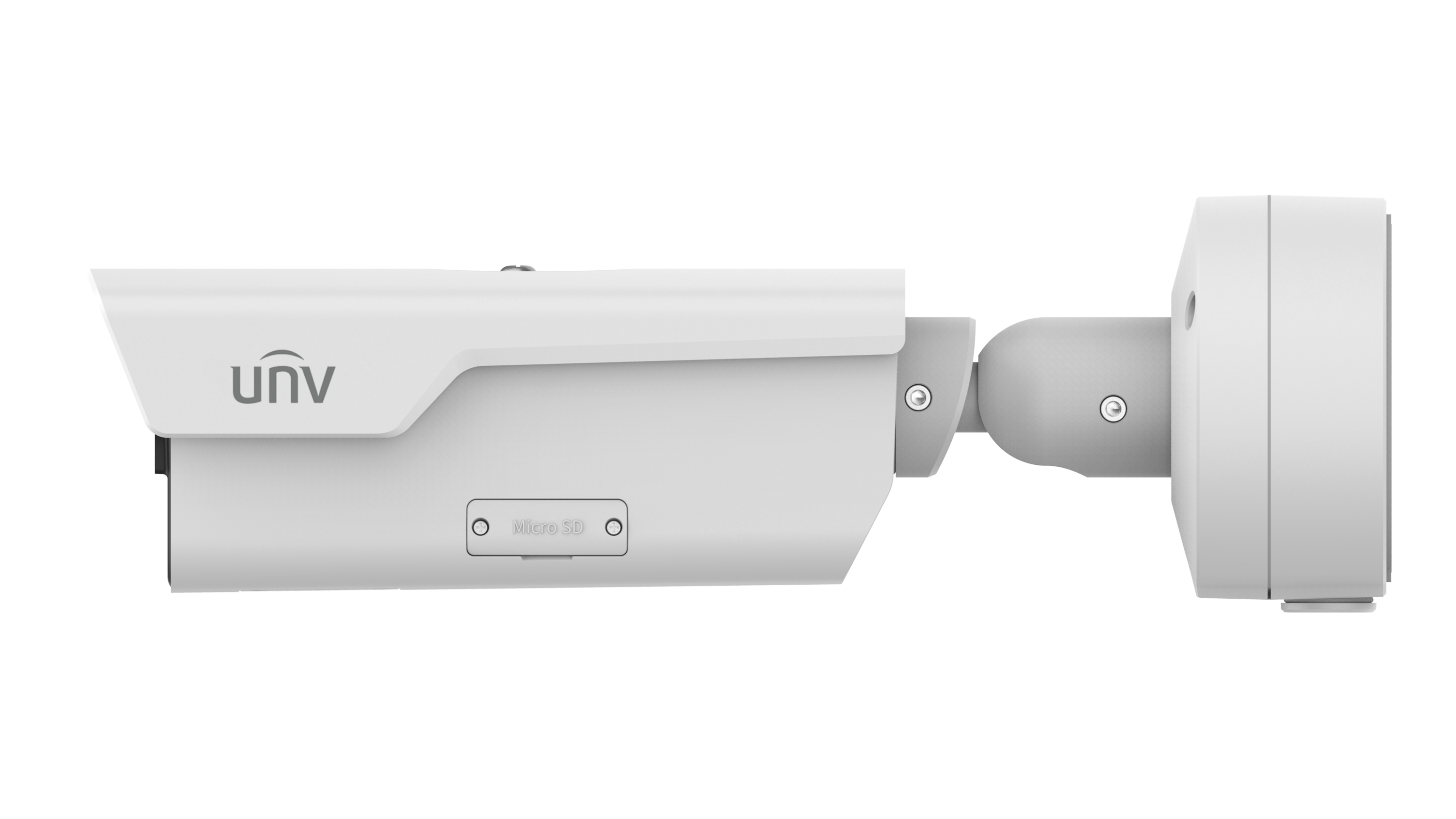

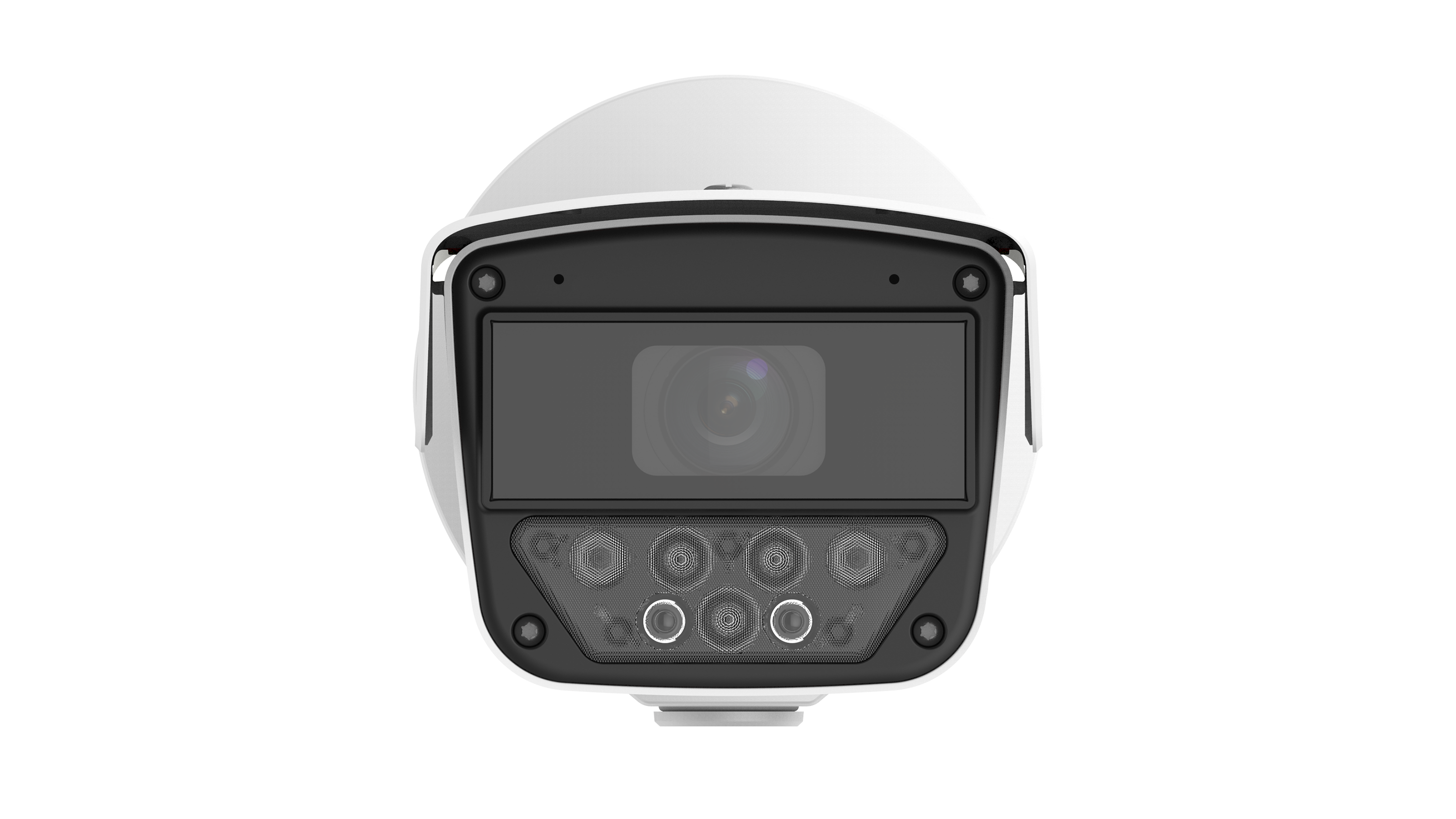

IPC268EA-AHDZK-I1
- • High quality image with ８MP,1/1.8” CMOS sensor • 3840*2160@60fps in the main stream, offering smoother live video and more details • Ultra 265, H.265, H.264, MJPEG • -ISP technology, comprehensive improvement in image quality • Metadata analyse, support human body, motor vehicle and non-motor vehicle image capture and attribute collection, realize data visualization management, allow users to get target information for further data analysis • , support front-end comparison, support blocklist and allowlist comparison, increases the concurrent detection number up to 120 • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios • LightHunter technology ensures ultra-high image quality in low illumination environment • Up to 140 dB Optical WDR (Wide Dynamic Range) • DC12V or PoE (IEEE 802.3at) power supply • Wide voltage range of ±25% in DC
Key Features
- N/A Resolution
- Sensor: 1/1.8" CMOS
- Day/Night: IR-cut filter with auto switch (ICR)
- WDR: DWDR
- Video: Ultra 265, H.265, H.264, MJPEG
- Frame Rate: Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: 640*360,Max 30fps; 2C
- Lens: 2.8 mm - 4.0 mm
- Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Size: 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H)
- Weight: 0.24kg (0.53lb)
Camera
Video & Audio
| Max Resolution | N/A | Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Sensor | 1/1.8" CMOS | Frame Rate | Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: 640*360,Max 30fps; 2C |
| Day/Night | IR-cut filter with auto switch (ICR) | Audio Compression | G.711U, G.711A |
| WDR | DWDR | Two-Way Audio | N/A |
Lens
General
| Focal Length | 2.8 mm - 4.0 mm | Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | Dimensions | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Weight | 0.24kg (0.53lb) |
